AD7835ASZ
Manufacturer:
Analog Devices
Mfr.Part #:
AD7835ASZ
Datasheet:
Description:

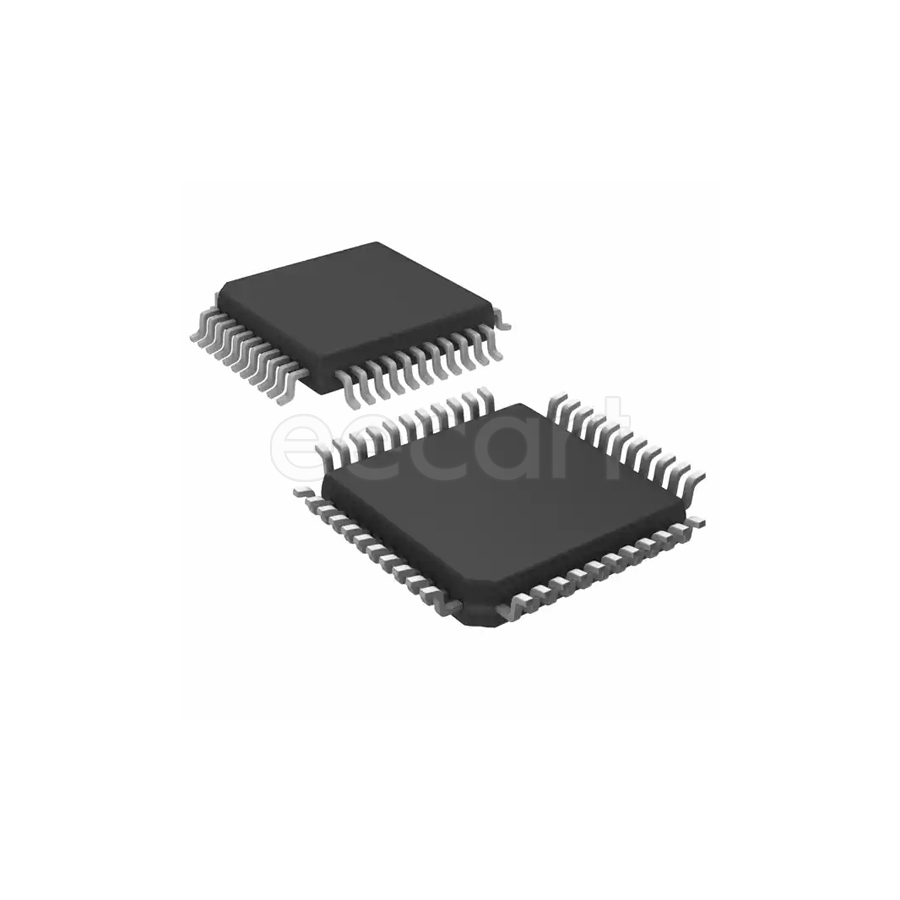

Digital to Analog Converters (DACs) MQFP-44 SMD/SMT number of channels:4 number of bits:14 Number of D/A Converters:4
| Parameter | Value |
|---|---|
| Length | 10 mm |
| Width | 10 mm |
| Max Operating Temperature | 85 °C |
| Min Operating Temperature | -40 °C |
| Number of Pins | 44 |
| Height | 2 mm |
| Packaging | Bulk |
| Lead Free | Contains Lead |
| Radiation Hardening | No |
| RoHS | Compliant |
| Polarity | Bipolar, Unipolar |
| REACH SVHC | No SVHC |
| Contact Plating | Tin |
| Interface | Parallel |
| Min Input Voltage | 5 V |
| Output Type | Voltage |
| Lifecycle Status | Production (Last Updated: 2 months ago) |
| Max Power Dissipation | 465 mW |
| Max Supply Voltage | 15.75 V |
| Min Supply Voltage | 14.25 V |
| Power Dissipation | 465 mW |
| Number of Channels | 4 |
| Number of Bits | 14 |
| Number of DAC Channels | 4 |
| Max Input Voltage | 14 V |
| Sampling Rate | 100 ksps |
| Integral Nonlinearity (INL) | 2 LSB |
| Number of Converters | 4 |
| Settling Time | 10 µs |
| Dual Supply Voltage | 15 V |
| Min Output Voltage | 14 V |
| Resolution | 1.75 B |
| Max Output Voltage | 5 V |
| Max Dual Supply Voltage | 15.75 V |
| Min Dual Supply Voltage | 14.25 V |
| Number of D/A Converters | 4 |
| Conversion Rate | 100 ksps |
| Differential Output | No |
| Schedule B | 8542390000 |
| Manufacturer Lifecycle Status | PRODUCTION (Last Updated: 2 months ago) |
| Reference Type | External |
| Interface Type(Data Interface) | Parallel |
| Max Digital Supply Voltage | 5 V |
| Analog Supply Voltage | ±15 V |
Stock: 20
Distributors
pcbx
pcbxUnit Price$43.26713
Ext.Price$43.26713
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $43.26713 | $43.26713 |
| 10 | $34.48957 | $344.89570 |
| 25 | $34.48612 | $862.15300 |
| 50 | $34.48273 | $1724.13650 |
